OPTITEMP TRA-S22

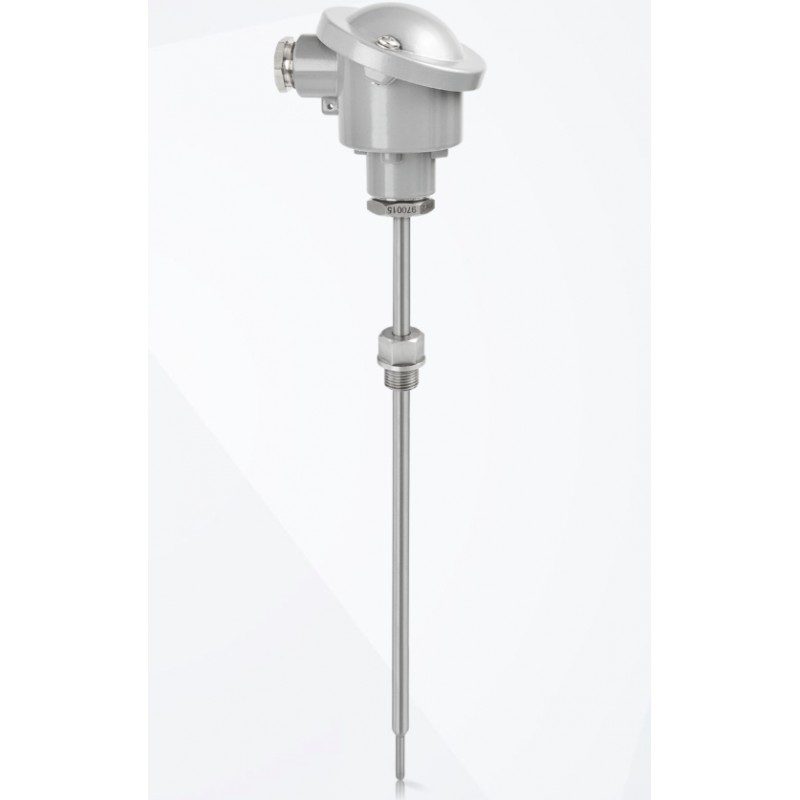

The OPTITEMP TRA-S22 is a threaded RTD sensor assembly with a reduced welded multipart thermowell (based on form 2G) and neck tube. The industrial temperature assembly for standard applications is suitable for temperature measurement of liquids and gases where a fast response time is required. It can be used in pipes and tanks at low to medium pressures and flow velocities. The OPTITEMP TRA-S22 is designed to operate up to +600°C / +1100°F.

Product highlights

• Temperature measurement of liquids and gases
• Thermowell material: 1.4404 / 316L or 1.4571 / 316Ti
• Standard or customised lengths
• Different connection heads available (IP54…IP68)
• With optional temperature transmitter

Typical applications

• Standard applications with low to medium pressures and flow velocities
• Temperature measurement in pipes and tanks
• Basic measuring tasks in various industries:
  • Chemical and petrochemical
  • Oil and gas
  • Power generation
  • Machinery and apparatus / OEM
  • Iron and steel
  • Pulp and paper
