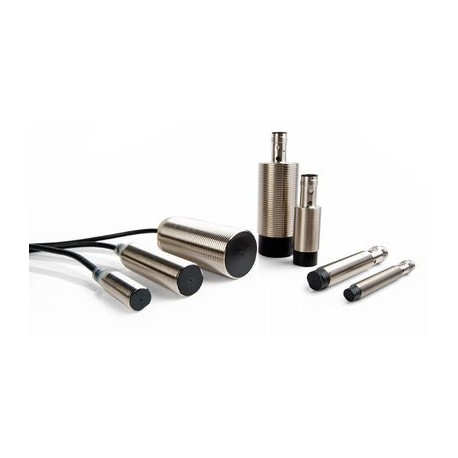

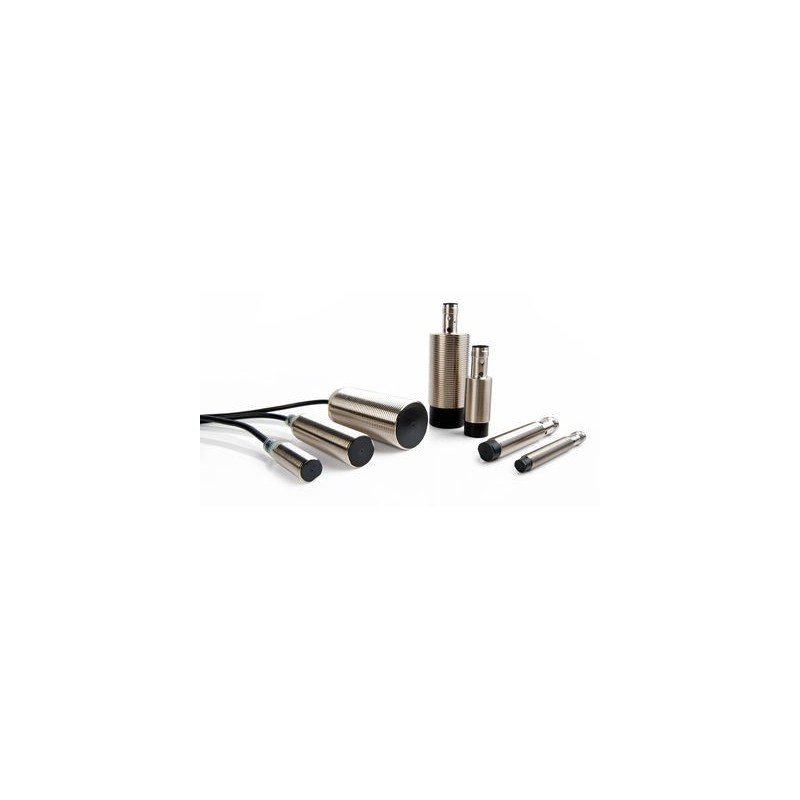

E2B Serisi Endüktif Sensörler Büyük Resim

E2B Serisi Endüktif Sensörler

Yeni Ürün

Ürün Açıklaması

Standart endüstriyel ortamlar için ideal çözüm

Basit yapısı ve Omron’un yenilikçi “sıcak eritme” üretim süreci sayesinde, E2B sensörler iki özelliği bünyesinde topladı: paranızın tam karşılığını alma ve yüksek güvenilirlik.

  • Her yönden görülebilen gösterge
  • Lazer baskı parça numarası
  • Titreşim darbe dayanımı:  IEC 60947-5-2 (10 - 55 Hz)
  • İşlem sıcaklığı: -25°C - 70°C
  • Su geçirmezlik: IP67

Pre-wired

Size



Sensing distance

Output configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP

1

E2B-S08KS02-WP-B1 2M

2

E2B-S08KS02-WP-B2 2M

2

−

⬛

4.0 mm

PNP

1

E2B-S08KN04-WP-B1 2M

2

E2B-S08KN04-WP-B2 2M

2

M12

⬛

−

4.0 mm

PNP

1

E2B-M12KS04-WP-B1 2M

E2B-M12KS04-WP-B2 2M

−

⬛

8.0 mm

PNP

1

E2B-M12KN08-WP-B1 2M

E2B-M12KN08-WP-B2 2M

M18

⬛

−

8.0 mm

PNP

1

E2B-M18KS08-WP-B1 2M

E2B-M18KS08-WP-B2 2M

−

⬛

16.0 mm

PNP

1

E2B-M18KN16-WP-B1 2M

E2B-M18KN16-WP-B2 2M

M30

⬛

−

15.0 mm

PNP

1

E2B-M30KS15-WP-B1 2M

E2B-M30KS15-WP-B2 2M

−

⬛

30.0 mm

PNP

1

E2B-M30LN30-WP-B1 2M

E2B-M30LN30-WP-B2 2M

Connector types

Size



Sensing distance

Output configuration

Order code

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP

1

E2B-S08KS02-MC-B1

2

E2B-S08KS02-MC-B2

2

−

⬛

4.0 mm

PNP

1

E2B-S08KN04-MC-B1

2

E2B-S08KN04-MC-B2

2

M12

⬛

−

4.0 mm

PNP

1

E2B-M12KS04-M1-B1

E2B-M12KS04-M1-B2

−

⬛

8.0 mm

PNP

1

E2B-M12KN08-M1-B1

E2B-M12KN08-M1-B2

M18

⬛

−

8.0 mm

PNP

1

E2B-M18KS08-M1-B1

E2B-M18KS08-M1-B2

−

⬛

16.0 mm

PNP

1

E2B-M18KN16-M1-B1

E2B-M18KN16-M1-B2

M30

⬛

−

15.0 mm

PNP

1

E2B-M30KS15-M1-B1

E2B-M30KS15-M1-B2

−

⬛

30.0 mm

PNP

1

E2B-M30LN30-M1-B1

E2B-M30LN30-M1-B2

Optional features

Refer to complete datasheet or contact your OMRON representative for the below optional features

Sensing module and body

− Single sensing distance (ideal for compatibility with previous machine generations)

− Long body (ideal for mounting through thicker constructions)

Connection

− M8 3-pin -MC e.g. E2B-S08KS02-MC-B1

Output

− 200 mA max. load current

Specifications

(Exemplary for shielded versions.)

Item

M8

M12

M18

M30

E2B-S08KS

E2B-M12KS

E2B-M18KS

E2B-M30KS

Sensing distance

2 mm±10%

4 mm±10%

8 mm±10%

15 mm±10%

Response frequency

1,500 Hz

1,000 Hz

500 Hz

250 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Output reverse polarity protection, Power source circuit reverse polarity protection

Ambient temperature

Operating and storage

−25 to 70°C

Degree of protection

IP67 after IEC 60529

Material

Case

Stainless steel

Brass-nickel plated

Sensing surface

PBT
