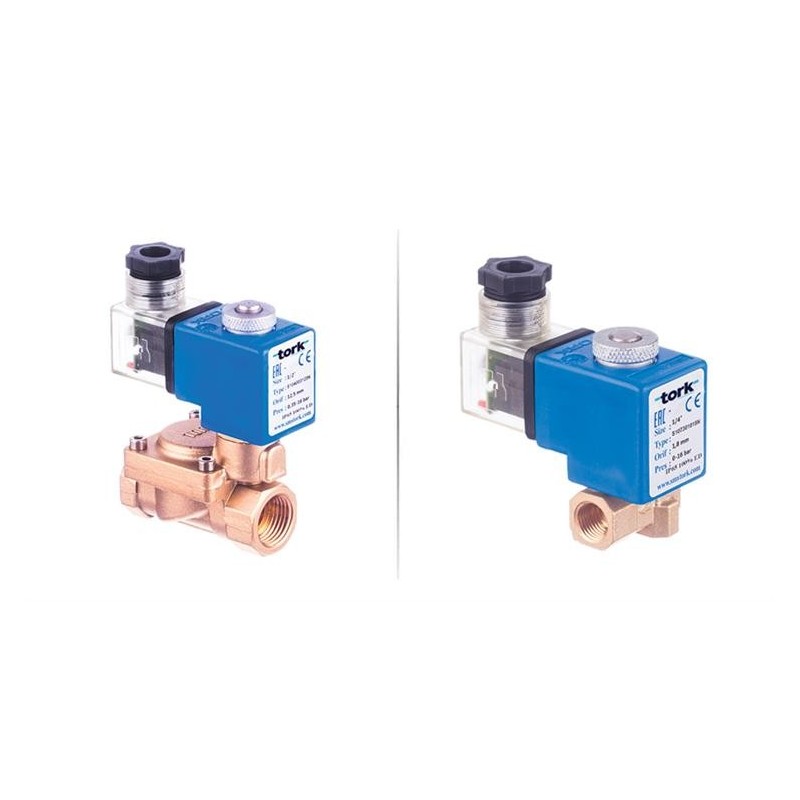

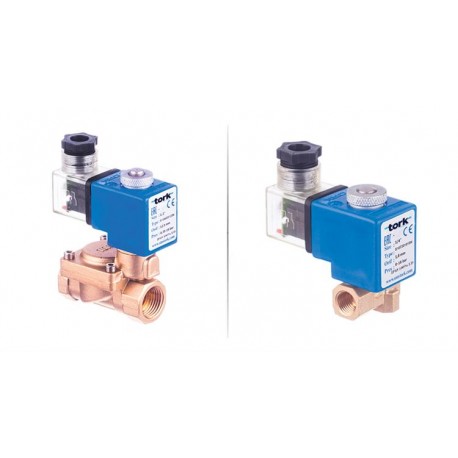

S1073 (TORK-GT) ECONOMIC GENERAL PURPOSE SOLENOID VALVE , NORMALLY CLOSED
New product
More info
GENERAL DETAILS
| Application | : | Air, water, gas | |||||||
| Size | : | 1/8", 1/2" BSP (on request NPT) 3/8", 1/2" (Pilot Opareted) | |||||||
| Pressure | : | 0 bar … 16 bar (orifice), 0,5 … 16 bar | |||||||
| Tube and international part | : | Brass, Stainless Steel | |||||||
| Body | : | Brass | |||||||
| Seal | : | NBR, on request VITON | |||||||
| Temperature | : | .-10°C…80 °C | |||||||
| Position | : | Normally Closed | |||||||
| Coil Voltage | : | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC | |||||||
| Protection Class | : | IP65 and Exproof models | |||||||
SPECIFICATION
| Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | |||
| Min | Max | Min | Max | |||||||
| S1073.00.018 | 1/8" | 1,8 | 0 | 16 | 1,6 | -10 | 80 | NBR | 0,31 | |
| S1073.00.025 | 1/8" | 2,5 | 0 | 12 | 3,2 | -10 | 80 | NBR | 0,31 | |
| S1073.00.030 | 1/8" | 3 | 0 | 10 | 4,6 | -10 | 80 | NBR | 0,31 | |
| S1073.00.040 | 1/8" | 4 | 0 | 9 | 6,4 | -10 | 80 | NBR | 0,31 | |
| S1073.00.045 | 1/8" | 4,5 | 0 | 8 | 7,5 | -10 | 80 | NBR | 0,31 | |
| S1073.01.018 | 1/4" | 1,8 | 0 | 16 | 1,6 | -10 | 80 | NBR | 0,3 | |
| S1073.01.025 | 1/4" | 2,5 | 0 | 12 | 3,2 | -10 | 80 | NBR | 0,3 | |
| S1073.01.030 | 1/4" | 3 | 0 | 10 | 4,6 | -10 | 80 | NBR | 0,3 | |
| S1073.01.040 | 1/4" | 4 | 0 | 9 | 6,4 | -10 | 80 | NBR | 0,3 | |
| S1073.01.045 | 1/4" | 4,5 | 0 | 8 | 7,5 | -10 | 80 | NBR | 0,3 | |
| S1073.02.030 | 3/8" | 3 | 0 | 10 | 4,6 | -10 | 80 | NBR | 0,4 | |
| S1073.02.040 | 3/8" | 4 | 0 | 9 | 6,4 | -10 | 80 | NBR | 0,4 | |
| S1073.02.050 | 3/8" | 5 | 0 | 7 | 9,2 | -10 | 80 | NBR | 0,4 | |
| S1073.03.030 | 1/2" | 2 | 0 | 10 | 4,6 | -10 | 80 | NBR | 0,38 | |
| S1073.03.040 | 1/2" | 3 | 0 | 9 | 6,4 | -10 | 80 | NBR | 0,38 | |
| S1073.03.050 | 1/2" | 5 | 0 | 7 | 9,2 | -10 | 80 | NBR | 0,38 | |
