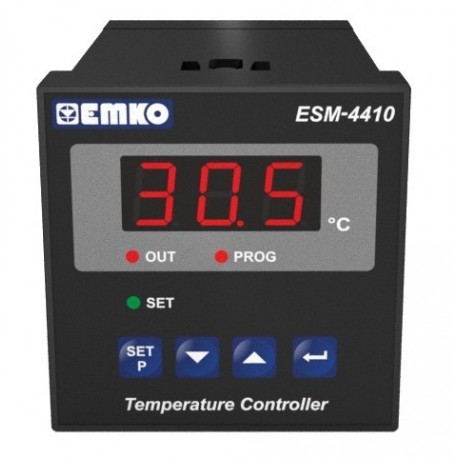

ESM-4410 Digital ON/OFF Temperature Control Device
ESM-XX10
ON/OFF Control Form
Selectable Heating and Cooling Function
PTC, NTC, PT-100, PT-1000 thermoresesistances input types
Fe-Const (J), NiCr-Ni (K) thermocouples input types
(Must be determined in order)
Operating Type Selection with Hysteresis
Adjustment of Temperature Offset Value
Minimum Pulling Time Adjustment for Control Outputs
Password Protection for Programming Section
| Features | Descriptions |
| Physical Features | |
| Dimensions | 48 mm x 48 mm 95 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0...50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (+%15) 50/60 Hz. 1.5 VA 115 Vac(+%15) 50/60 Hz. 1.5 VA 24 Vac(+%15) 50/60 Hz. 1.5 VA 24 Vac/dc (+%15, +%10) 50/60 Hz. 1.5 VA 100-240Vac 50/60Hz 10-30 Vdc |
| Sensor Inputs | NTC, PTC, TC, RTD NTC (10k @.25 °C) PTC(1000 @.25 °C) J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90) |
| Optional Sensor Inputs | |
| Scale | Fe CuNi 0°C...800°C NiCr 0°C...999°C PT 100 -50°C...400°C / -19,9°C...99.9°C NTC -50°C...100°C / -19,9°C...99.9°C PTC -50°C...150°C / -19,9°C...99.9°C |
| Accuracy | ± % 1 of full scale |
| Output | |
| Relay Output | 7A@250 Vac at resistive load |
| SSR Output | Max. 23mA, Max. 15Vdc |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On/Off |
| Reading Frequency | 3 readings per second |
| Communication Protocols | |
| Approvals | GOST-R, CE |
